Application：
Family and municipal drinking water water
supply system
Industrial water treatment system
Aquaculture
Swimming pool water treatment disinfection
Landscrape water disinfection
Product feature and characteristic:
1.?Disinfection efficiency
maximization: Reachen UV hydraulics technology can ensure UV dosage is even
throughout
? ??the reaction cavity consistency, thus can achieve the best
disinfection effect with minimal energy consumption.
2.?The integrated system makes the
installation is very simple: factory production, control box and ultraviolet
? ??disinfection reactor case flexible combination. Direction of inlet and outlet
can be flexibly adjusted.
3.??Flexible design and operation:
UV chamber has multiple models to be chosen, and horizontal or vertical
installation
? ? ?can be realized, is easy to match the layout design of different
kinds of waterworks.
4.??Tube type: high efficiency,
high output, low pressure Bergonzi tubes.
5.??Ultraviolet disinfection
cavity: 304 stainless steel material
6.??Max operation pressure: less
than 0.6Mpa
Professional design, good parts：

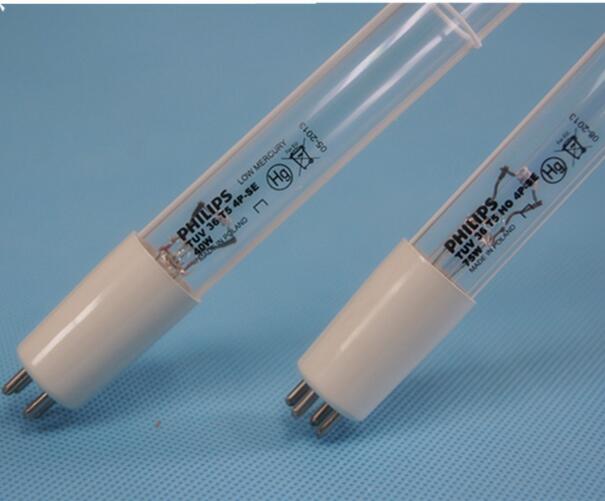

UV Lamp
Using the world's top low pressure high
strength ultraviolet lamp, installed in quartz tube reactor, parallel to the
water flow direction, produce high efficiency 254nm ultraviolet output.
Quartz Tube
UV disinfector using high transmittance quartz tube, light transmittance is larger than 90%,?ensures the?highest
intensity of ultraviolet output.
Influence factors of ultraviolet
disindection performance and efficien
Water temperature, water flow speed, ultraviolet light transmittance, content of suspended solid in?water.Water particle size distribution, lamp
performance, lamp configuration, ballast performance and fit with tubes.
|
